THERMAL GUARD • GRP LINING SYSTEMS

ENGINEERED INTERNAL TANK PROTECTION

Water Tank & GRP Lining Waterproofing

Seamless fibreglass-reinforced lining solutions developed for potable-water tanks, fire-water tanks, manholes and other liquid-retaining concrete structures.

12Process Stages

100%Seamless Protection

UAEProject Standards

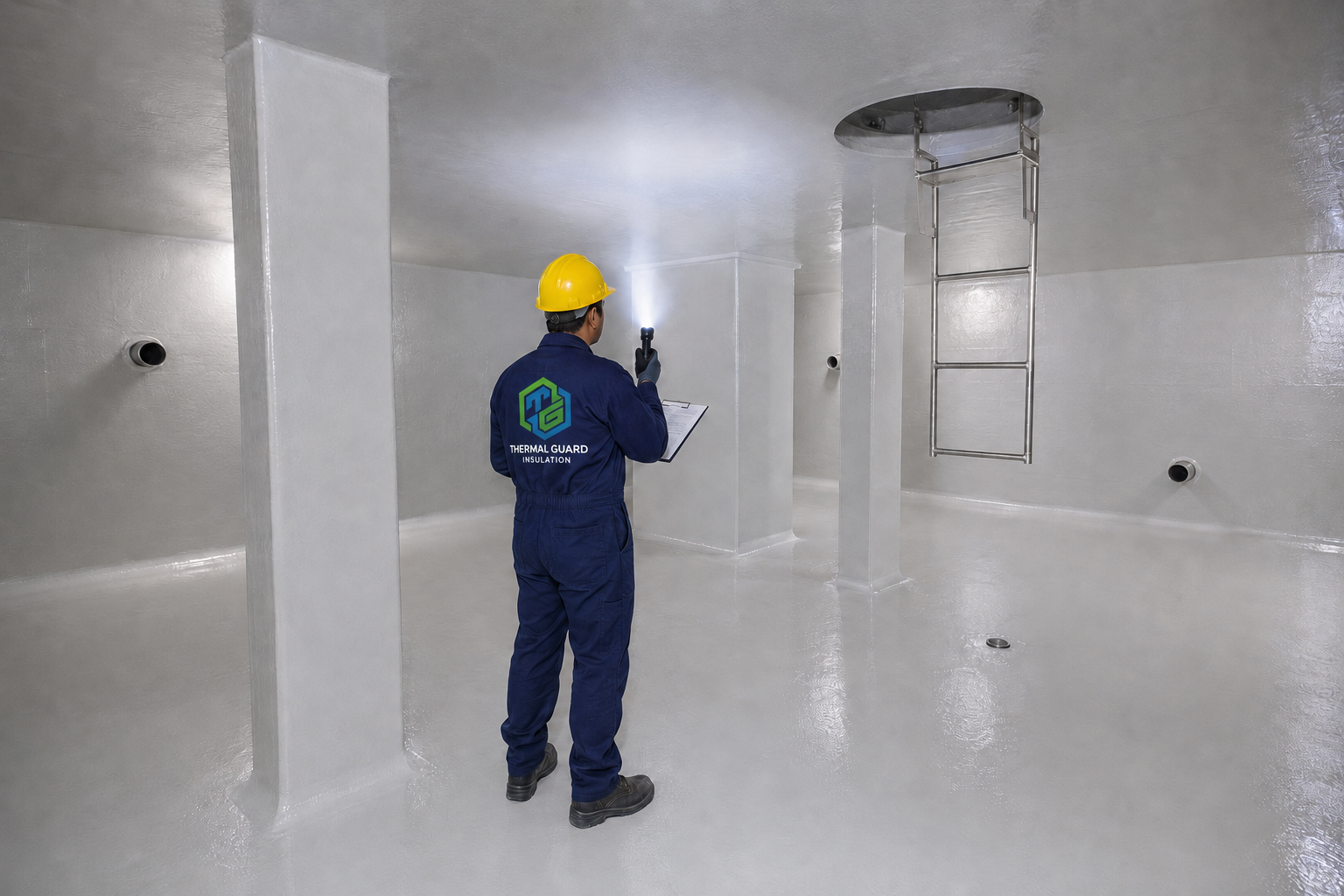

Completed GRP lining inspection inside an underground water tank

Completed GRP Lining & Quality Inspection

System Overview

Seamless Protection for Water-Retaining Structures

Our GRP lining system forms a strong, joint-free and cleanable internal barrier. Every installation follows the approved method statement, specified laminate build-up and controlled quality procedures from surface preparation through final water testing.

Compatible resin and reinforcement selected for the stored liquid.

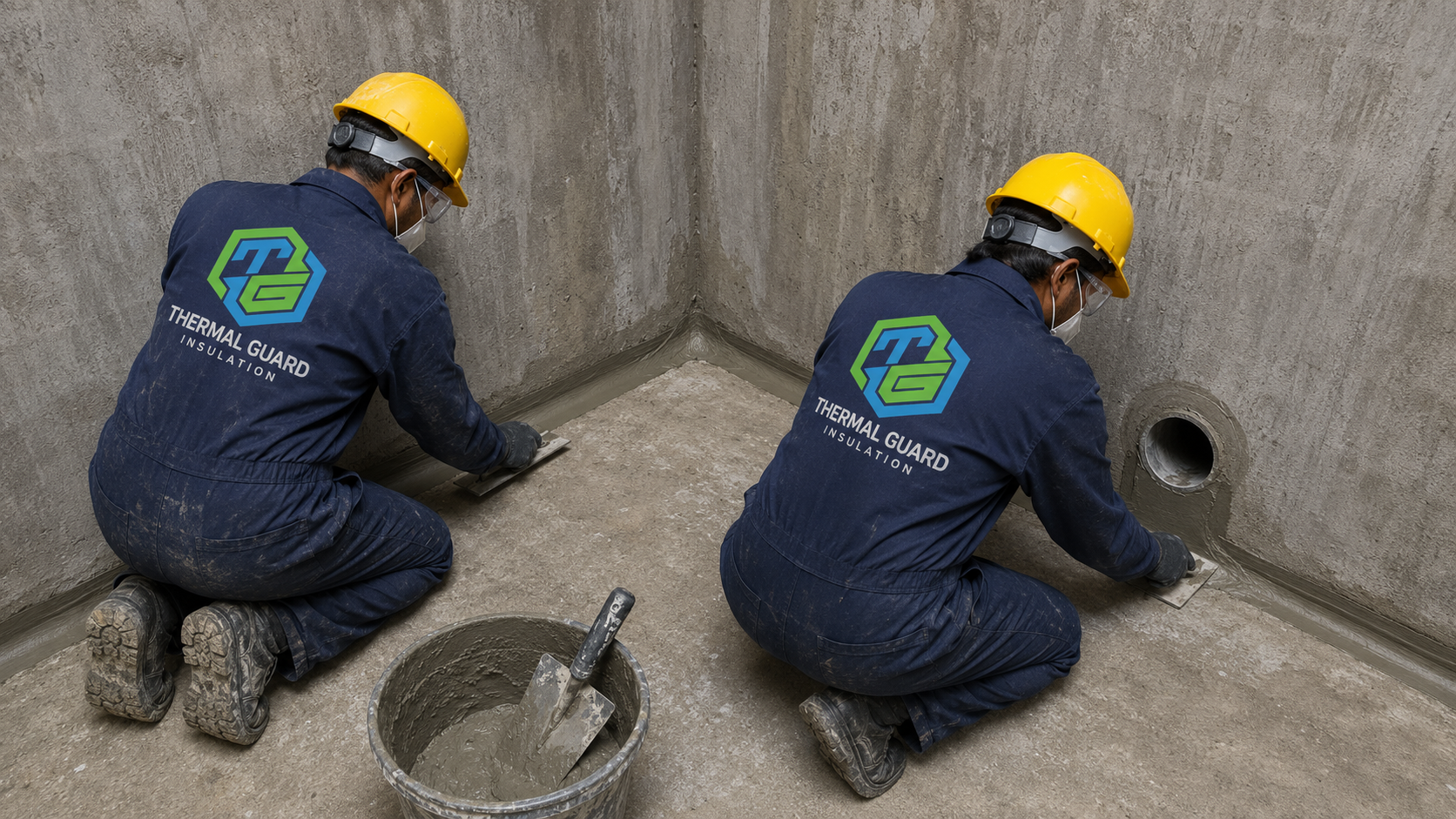

Detailed treatment of corners, joints and pipe penetrations.

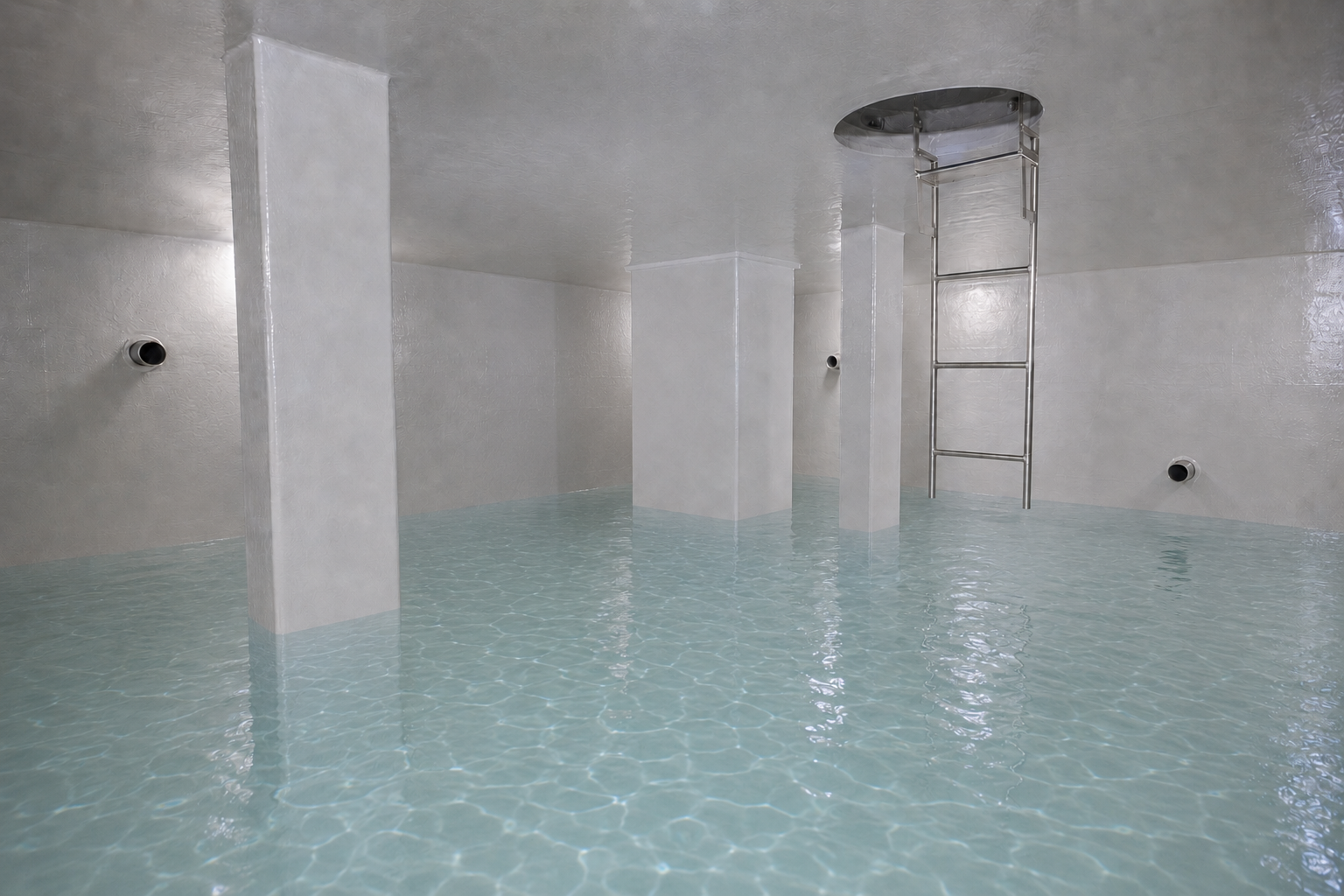

Thickness, continuity and watertightness checked before handover.

Water Tank, Manhole & GRP Lining Waterproofing in Dubai

Thermal Guard Insulation Contracting LLC provides waterproofing and protective-lining solutions for potable-water tanks, fire-water tanks, irrigation tanks, swimming pools, sewage tanks, manholes, wet wells and underground water-retaining structures throughout Dubai and the UAE.

The correct system is selected according to the stored liquid, substrate, groundwater pressure, chemical exposure, crack movement, hygiene requirements and approved project specification. Click a system below to view its applications, installation method, advantages and limitations.

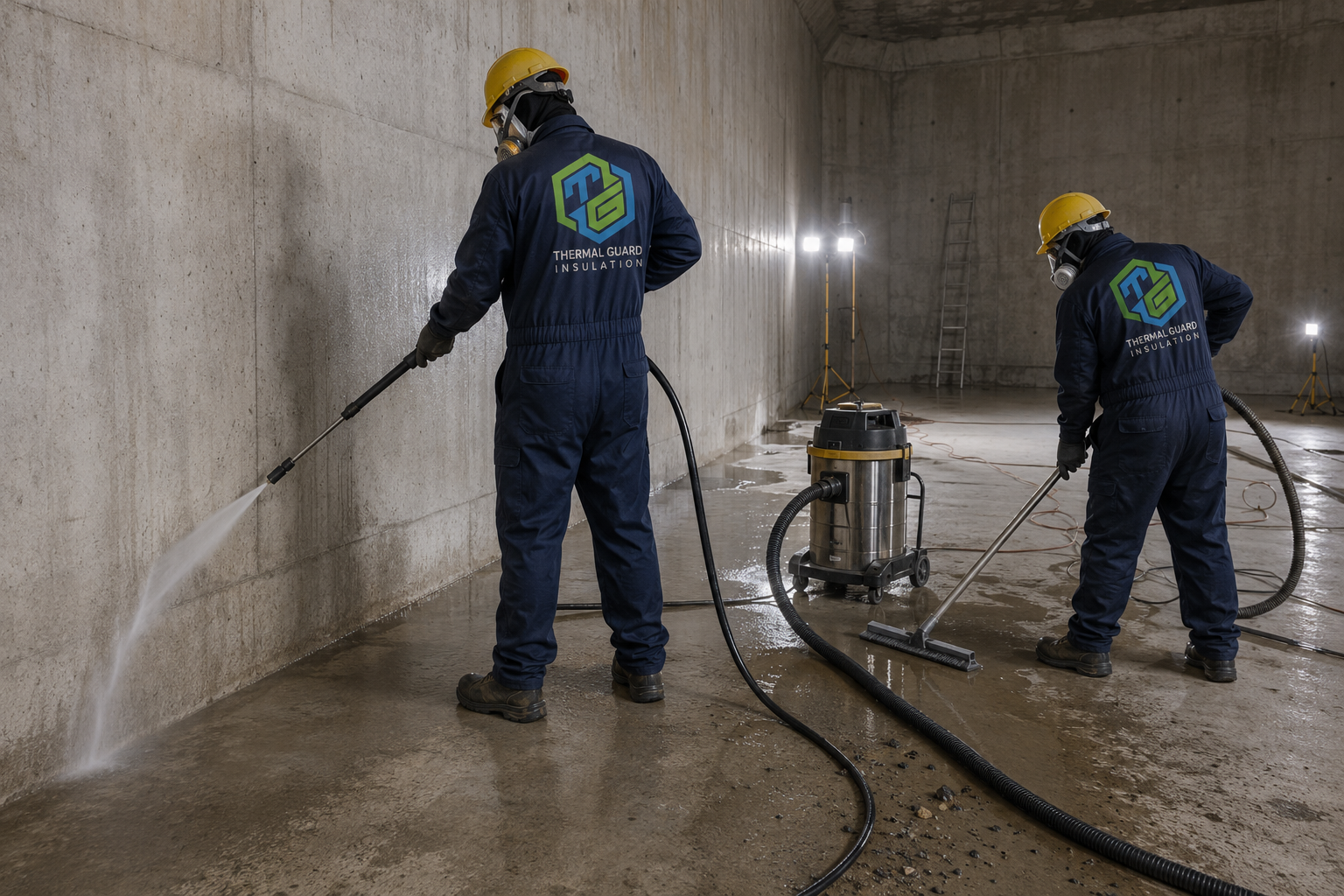

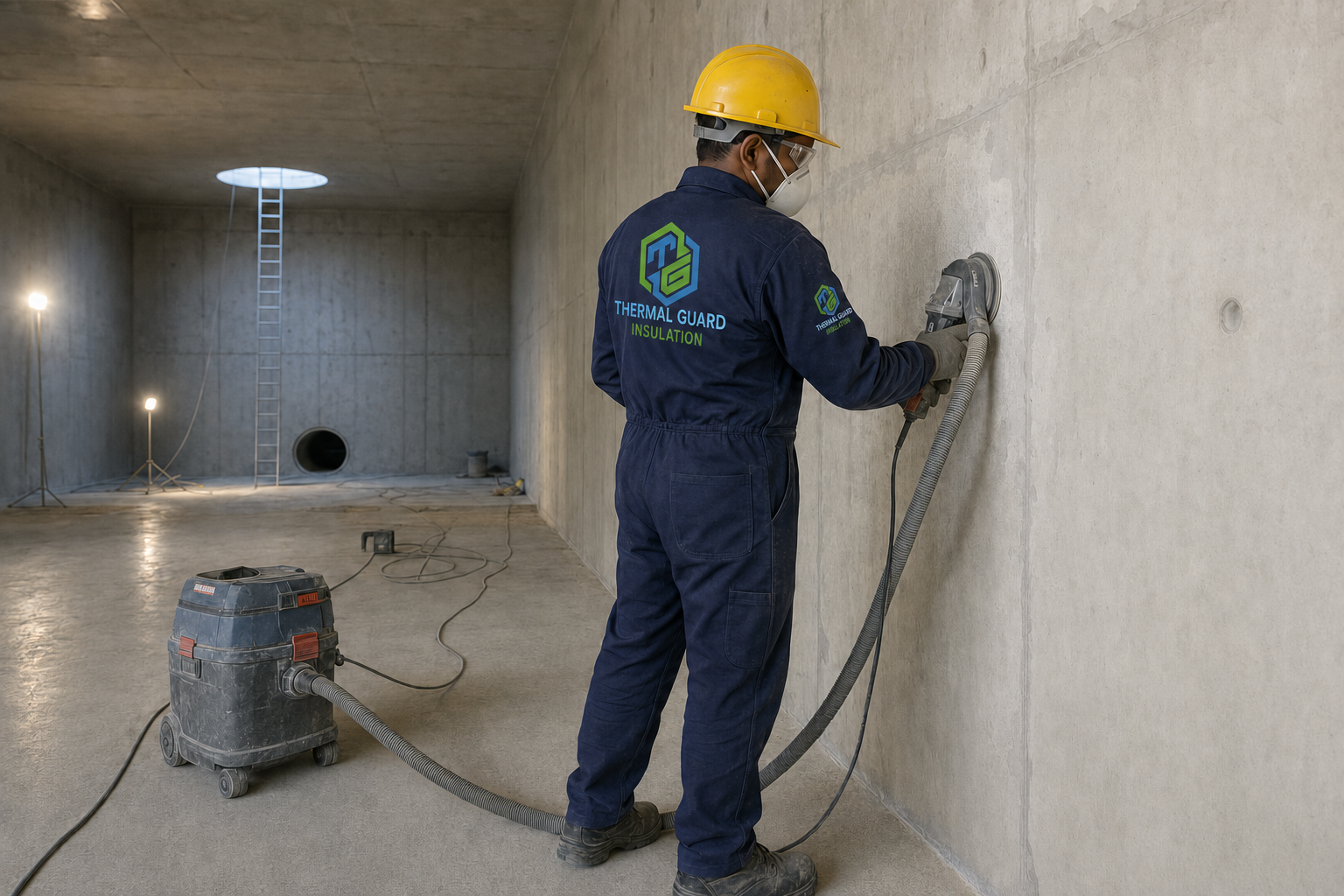

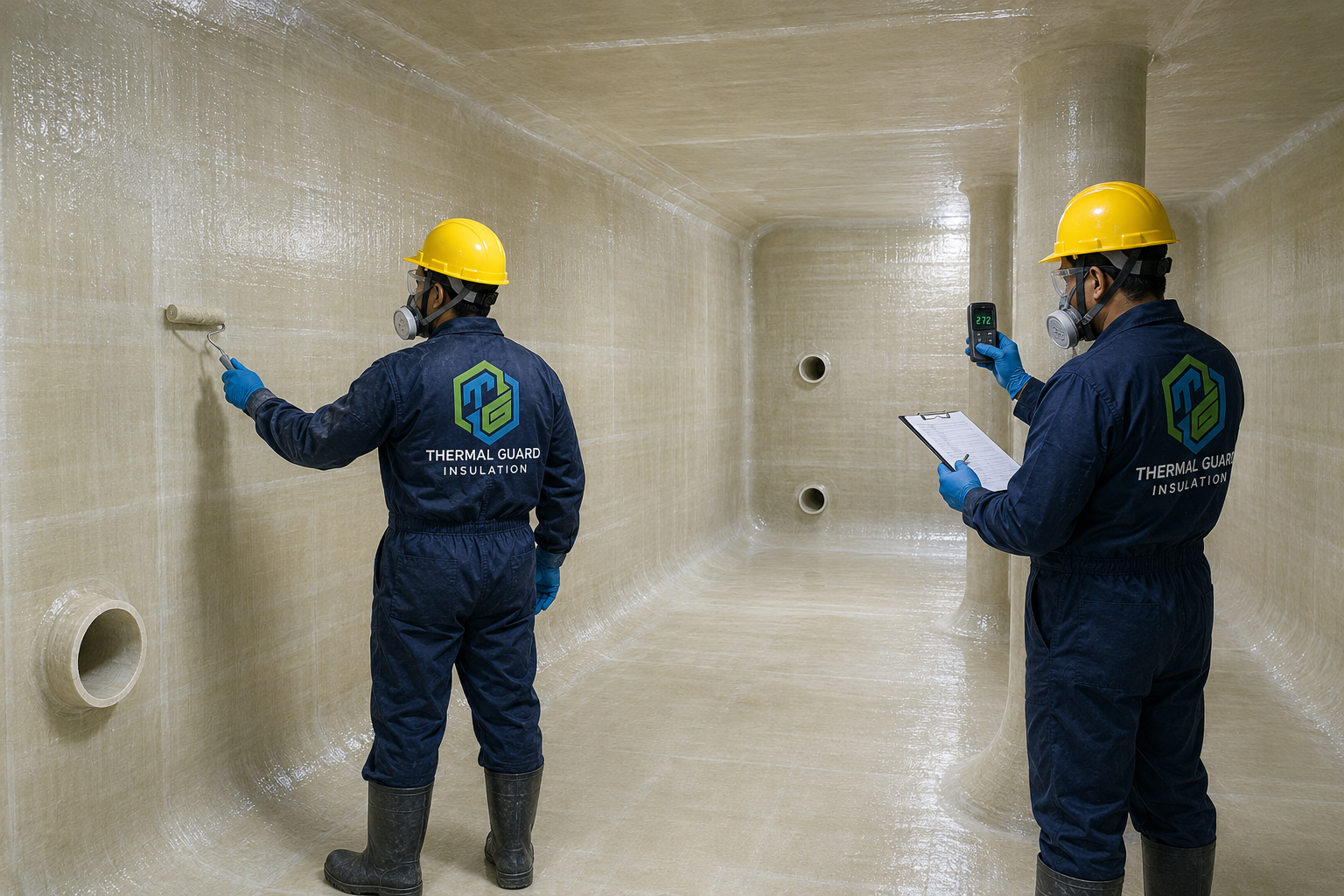

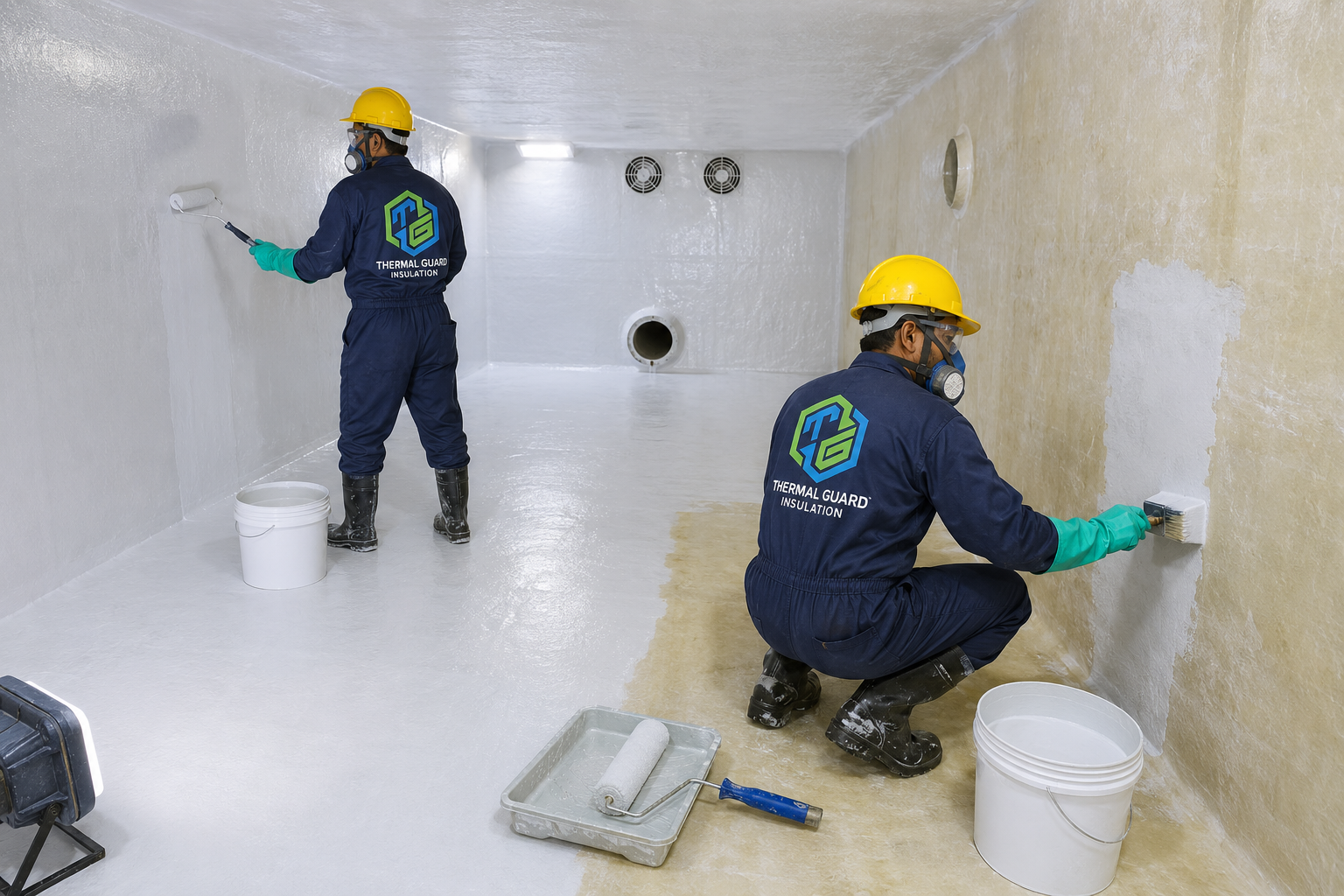

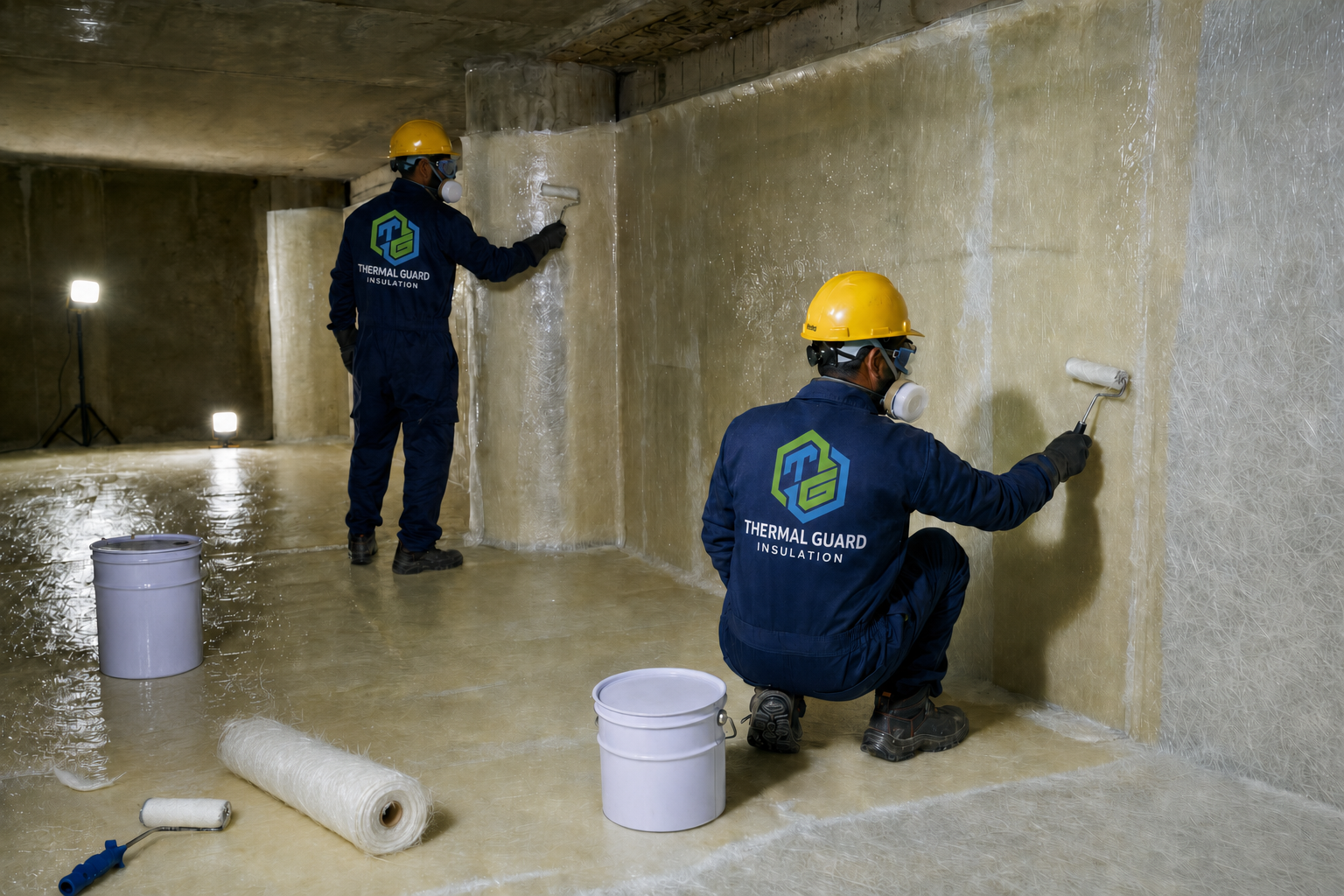

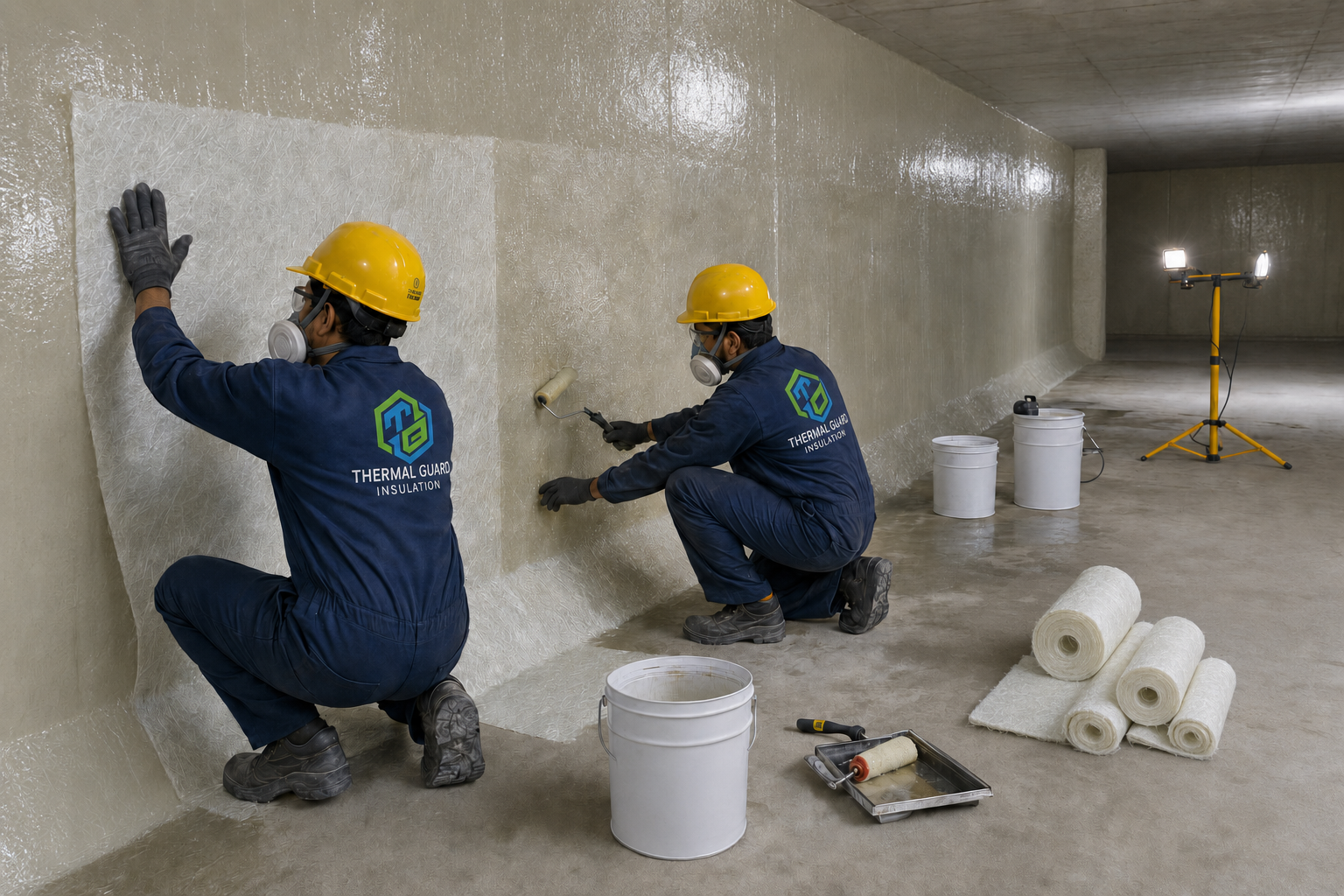

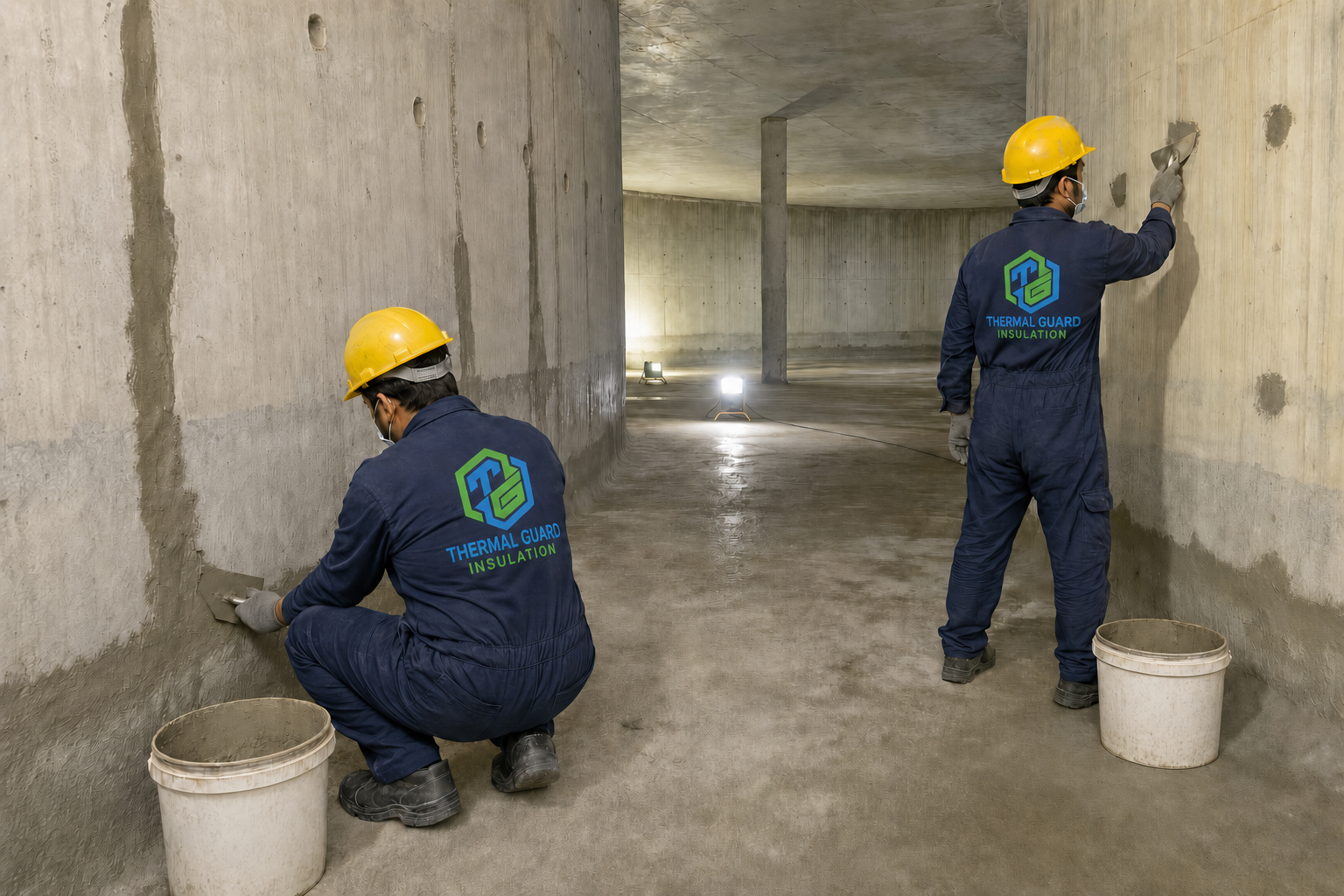

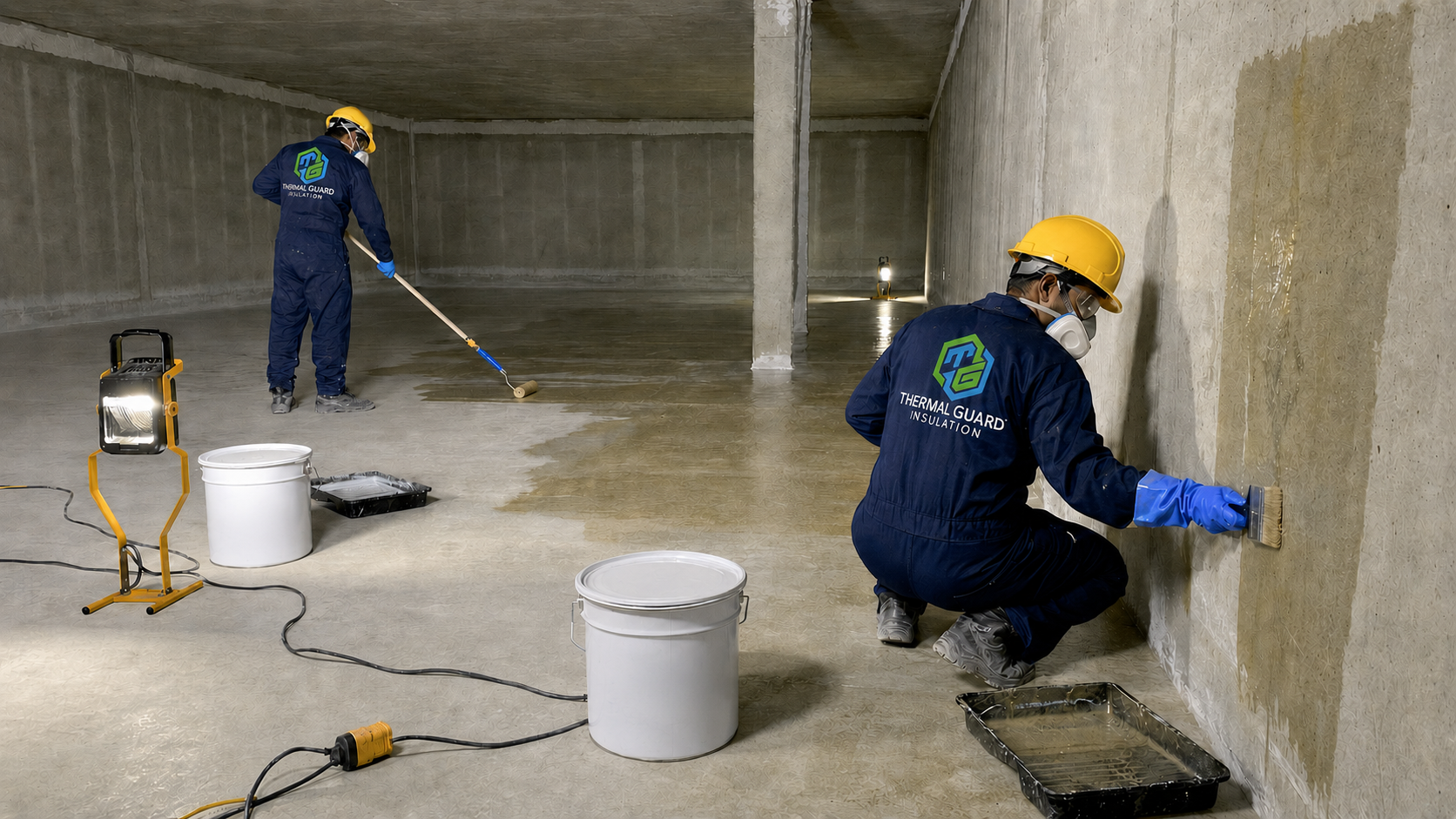

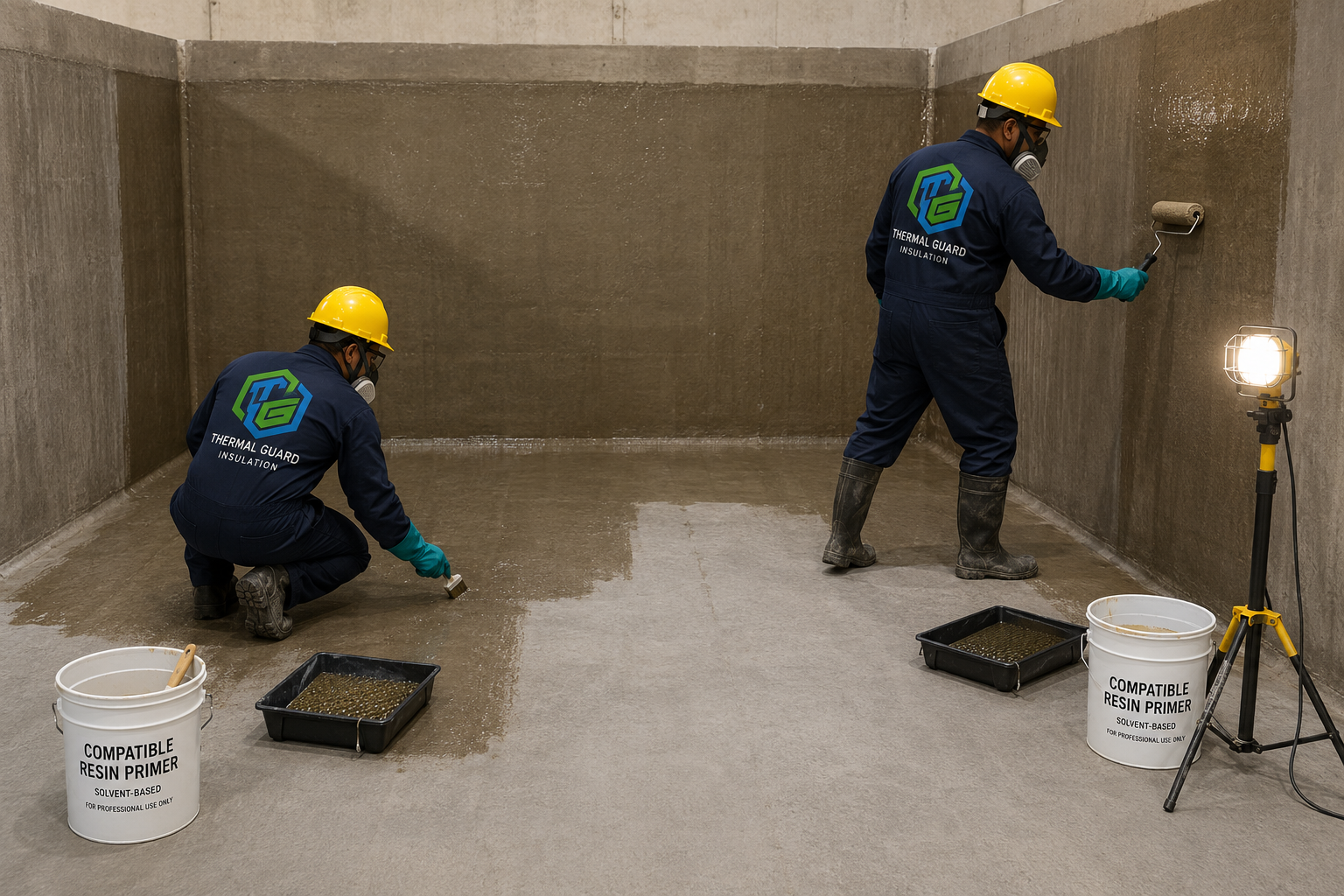

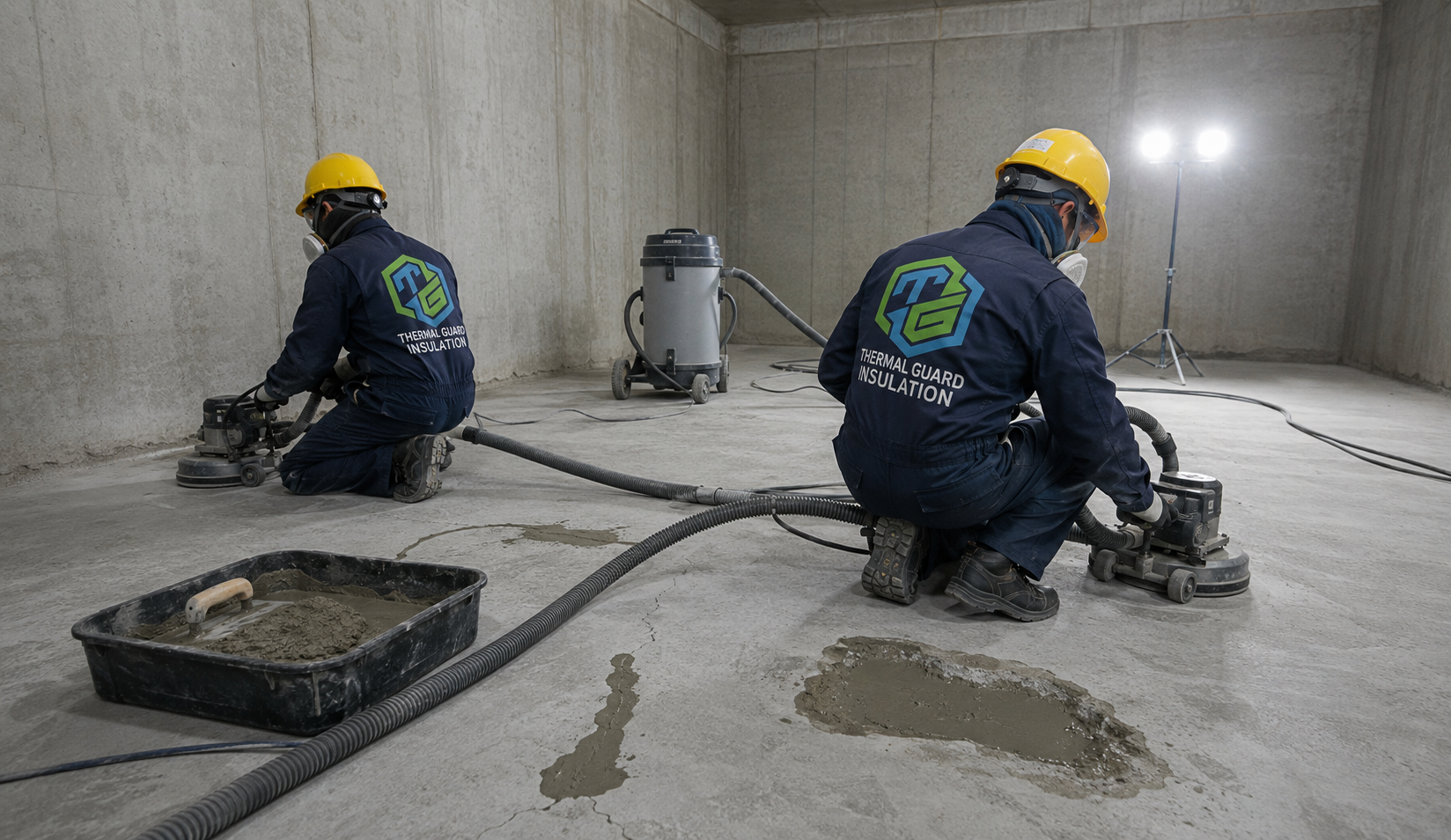

Water Tank GRP Lining Gallery

Click any image to view the complete process in full size.

12 Photos

Manhole Waterproofing and Chemical Protection

Manholes may be exposed to sewage, contaminated water, hydrogen sulphide, sulphuric-acid attack, sulphates, chlorides, abrasion, groundwater infiltration and joint movement. The protective lining must therefore be selected from the actual chemical and service conditions.

Vinyl-ester GRP: aggressive sewage, wet wells, pumping stations and industrial wastewater.
Chemical-resistant epoxy: smooth protective lining for concrete chambers under verified exposure conditions.
Polyurethane or polyurea: irregular shapes, rapid refurbishment, abrasion and limited movement.
Anchored HDPE lining: permanent thermoplastic corrosion barrier for new wastewater structures.
Sulphate-resistant cementitious lining: concrete reprofiling or a base layer beneath a resin lining.

Quality Control and Testing

Our quality checks may include substrate moisture and profile inspection, material batch verification, mixing and pot-life records, laminate or coating thickness checks, visual and tap testing, pull-off adhesion, holiday or spark testing where applicable, cure verification, water-tightness testing, and cleaning and disinfection before potable-water commissioning.
